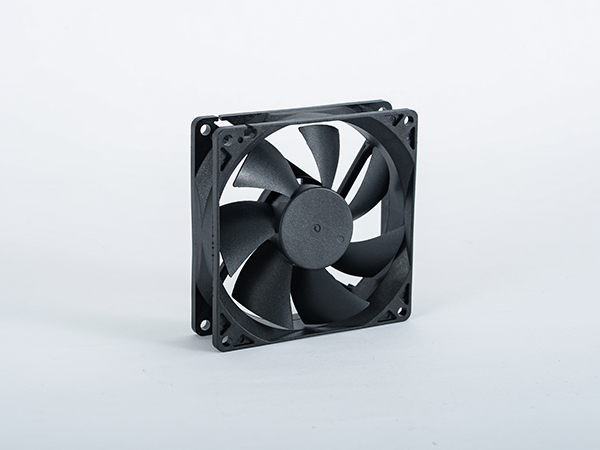

DC Cooling Fan 9225
Product Specifications
| MODEL NO. | BEARING TYPE | VOLTAGE (V) | CURRENT (A) | POWER (W.) | SPEED (RPM) | AIR FLOW (CFM) | PRESSURE (mmHQ) | NOISE dB(A) | WEIGHT (g) |
| DF9225L12XX | — | 12 | 160 | 1.92 | 2000 | 40.54 | 1.85 | 24.58 | 85 |
| DF9225M12XX | — | 12 | 190 | 2.28 | 2500 | 49.65 | 2.78 | 29.98 | 85 |
| DF9225H12XX | — | 12 | 230 | 2.76 | 2800 | 55.73 | 3.19 | 32.96 | 85 |
| DF9225L24XX | Sleeve | 24 | 150 | 3.60 | 2000 | 40.54 | 1.85 | 24.58 | 85 |
| DF9225M24XX | — | 24 | 180 | 4.32 | 2500 | 49.65 | 2.78 | 29.98 | 85 |
| DF9225H24XX | — | 24 | 220 | 5.28 | 2800 | 55.73 | 3.19 | 32.96 | 85 |
