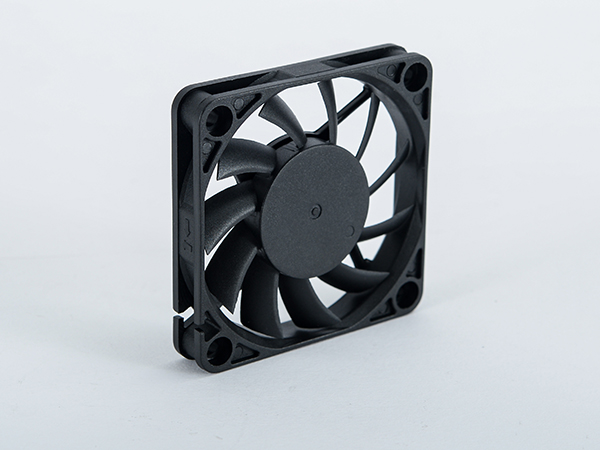

DC Cooling Fan 6010
Product Specifications
| MODEL NO. | BEARING TYPE | VOLTAGE (V) | CURRENT (A) | POWER (W.) | SPEED (RPM) | AIR FLOW (CFM) | PRESSURE (mmHQ) | NOISE dB(A) | WEIGHT (g) |
| DF6010L05XX | — | 5 | 170 | 0.85 | 3000 | 14.00 | 1.84 | 24.30 | 31 |
| DF6010M05XX | — | 5 | 340 | 1.70 | 3600 | 16.83 | 2.65 | 27.90 | 31 |
| DF6010H05XX | — | 5 | 430 | 2.15 | 4200 | 19.64 | 3.61 | 31.50 | 31 |
| DF6010L12XX | 2 Ball | 12 | 70 | 0.84 | 3000 | 14.00 | 1.84 | 24.30 | 31 |
| DF6010M12XX | or | 12 | 120 | 1.44 | 3600 | 16.83 | 2.65 | 27.90 | 31 |
| DF6010H12XX | Sleeve | 12 | 170 | 2.04 | 4200 | 19.64 | 3.61 | 31.50 | 31 |
| DF6010L24XX | — | 24 | 70 | 1.68 | 3600 | 16.83 | 2.65 | 27.90 | 31 |
| DF6010M24XX | — | 24 | 90 | 2.16 | 4200 | 19.64 | 3.61 | 31.50 | 31 |
| DF6010H24XX | — | 24 | 130 | 3.12 | 4800 | 22.44 | 4.71 | 34.20 | 31 |
